Free Fusion 360 Template: Screw Boss User Parameters (TERRA NAUTS)
Original title: 【Fusion 360テンプレート】寸法自動連動！ネジボス＆クリアランス設計用 ユーザーパラメータひな形（.f3d）
Overview

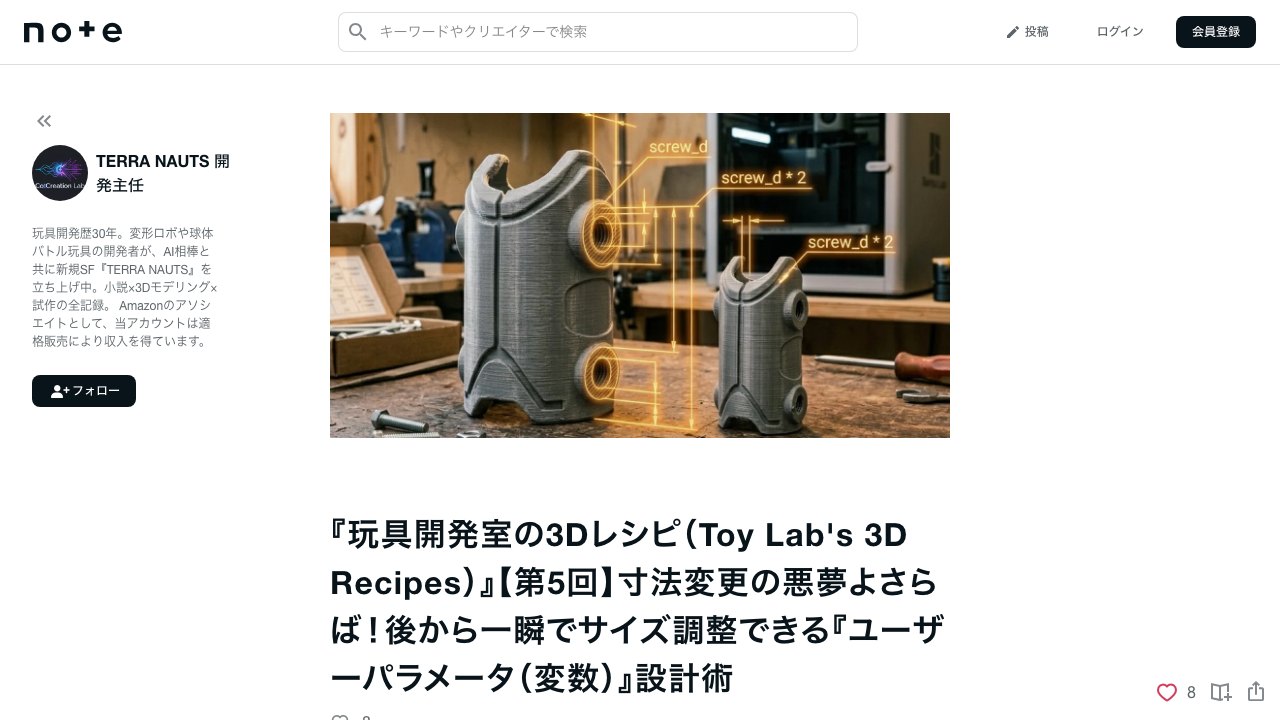

This Fusion 360 .f3d template comes from Co Creation Lab / TERRA NAUTS and accompanies a Japanese note.com article in the 'Toy Lab's 3D Recipes' series (#5) on parametric design with user parameters. The file is pre-loaded with user parameters for screw diameter, clearance, wall thickness, an auto-linked boss outer diameter and the pilot hole, so screw-boss dimensions update automatically when a value changes, and it includes a fit-test sample piece for checking fit on printed parts.
The 150 KB template is distributed through Gumroad as a pay-what-you-want download starting at $0, with an email address required. A compact starting point for anyone designing 3D-printable parts with user parameters.
What You Can Learn
- User-parameter setup for screw diameter, clearance, wall thickness and boss OD
- Auto-linked boss outer diameter that follows the other dimensions
- Fit-test sample piece for checking clearance on printed parts
Access: Free (email signup)
