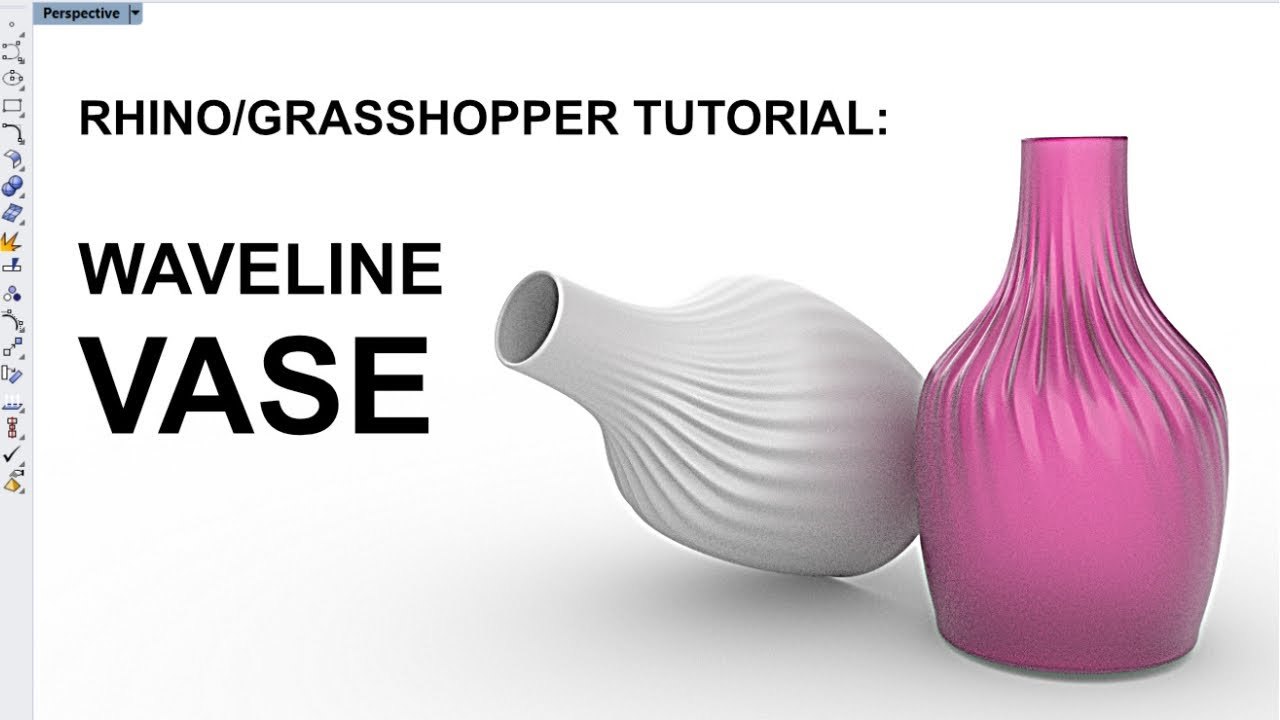

Free Grasshopper Definition: Waveline Vase Product Design (PC Sim)

Overview

PC Sim's Rhino / Grasshopper Product Design Tutorial: Waveline Vase uses the author's Waveline Shaper definition, a sine-wave surface generator with a graph-mapper fade, to model a wave-patterned vase and then finish the product in Rhino; no Rhino version is stated. The definition shows sine-function waveforms, Graph Mapper control and NURBS surface continuity (tangent and curvature) applied to a real product.

The linked file is the Waveline Shaper definition (the same family as the stand-alone Waveline Shaper video), a free direct download from a Box link in the video description. Good for product designers pairing Grasshopper with Rhino finishing.
