Free Grasshopper Files: OpenNest Nesting in Rhino 8 (mvelentzas)
Original title: Nesting in Rhino 8 with OpenNest, Elefront and byRhinoGadget
Overview

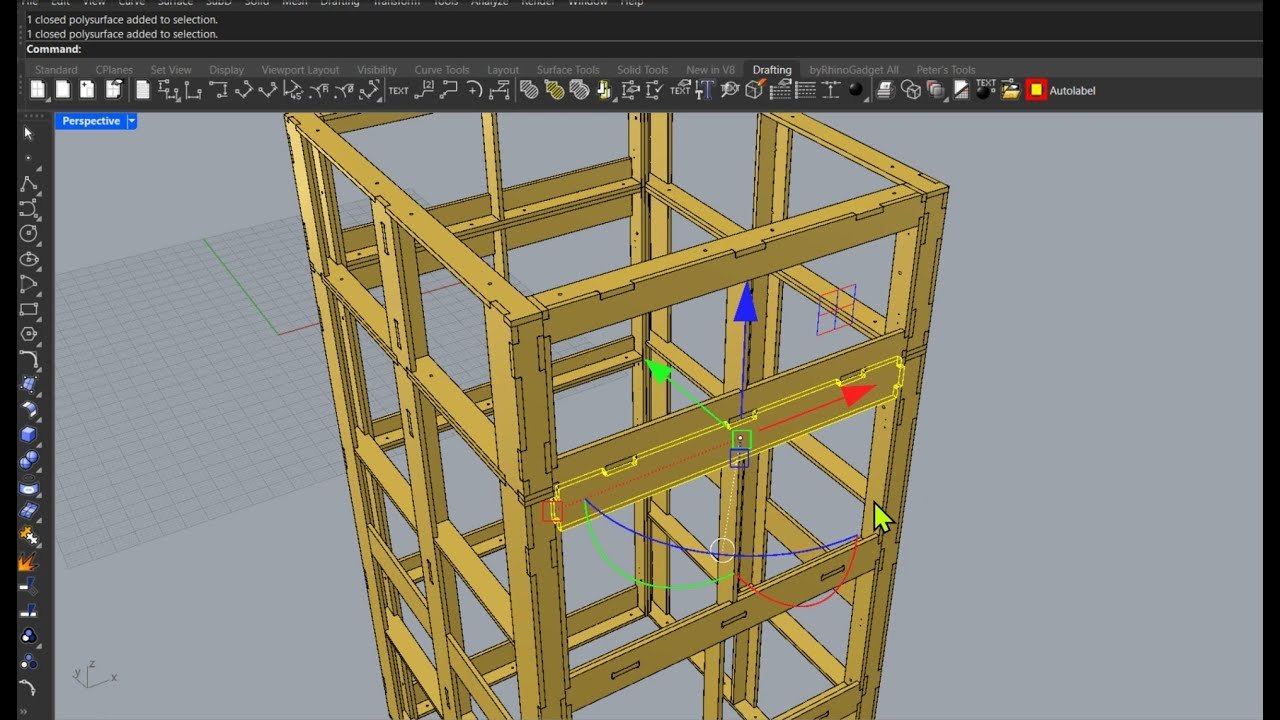

mvelentzas shares two Grasshopper definitions for Rhino 8 that nest parts for CNC cutting with OpenNest, shown in the video Nesting in Rhino 8 with OpenNest, Elefront and byRhinoGadget. One definition nests each part's bounding box (faster), the other nests the polysurfaces themselves (slower), while eleFront reads Rhino object names and properties to label the parts; two companion Python scripts add the names as text or dots.
All three plugins (OpenNest, eleFront, byRhinoGadget) are free on food4rhino, and the definitions (26 KB and 20 KB) are free downloads from Google Drive links in the description. Useful for digital fabrication and CNC-based furniture work.
What You Can Learn
- Nest parts for CNC cutting with OpenNest (bounding box vs polysurface)
- Read Rhino object names/properties with eleFront to label parts
- Python scripts that add part names as text or dots
Access: Free direct download
