Free Revit Dynamo Script Pack: 141 Structural Marking, Rebar and Dimensioning Graphs (KennySTRUCT)

Overview

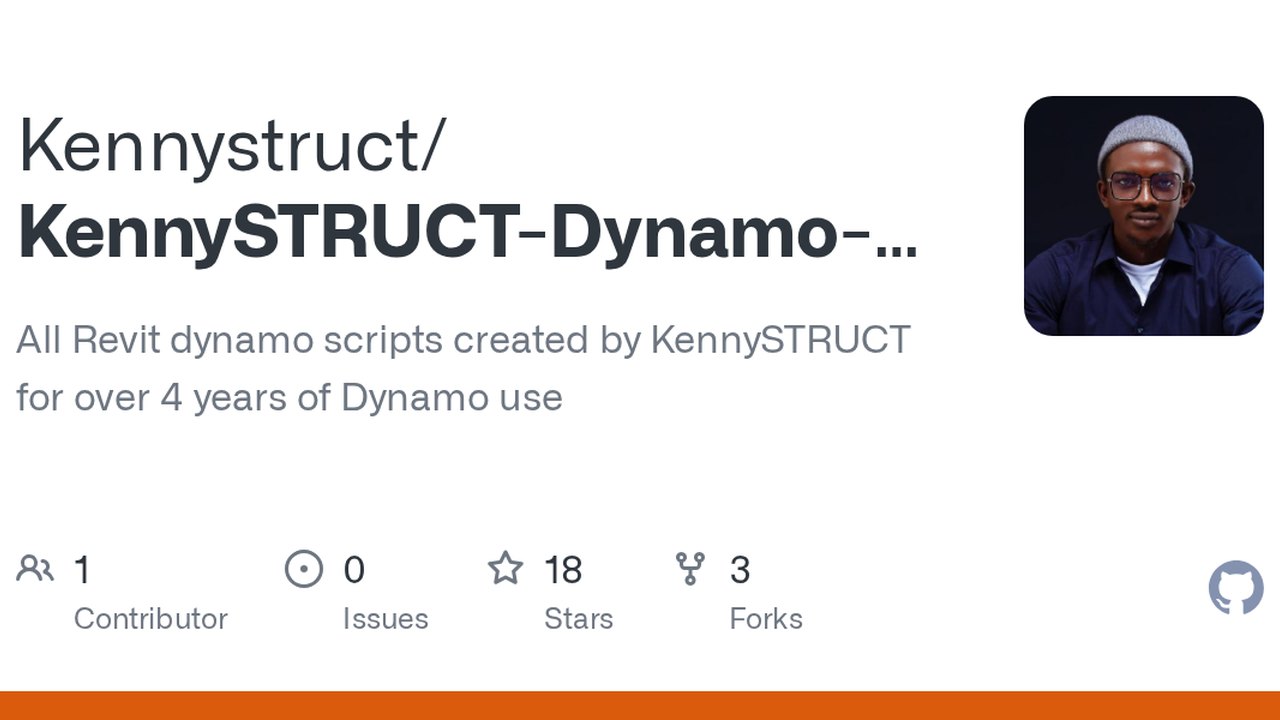

Kehinde Ayobade (KennySTRUCT) shares the Dynamo for Revit graphs from more than four years of structural work in one GitHub repository. The 141 graphs sit in 22 topic folders, among them element marking for beams, columns, pile caps and piles, automatic dimensions from elements to grids, rebar automation for beams, columns and walls, wall openings where pipes cross walls, splitting columns and walls by level, analytical model adjustment, a clash matrix exported to Excel and glazing stock packing.

Sample models such as Wall.rvt, Pipes.rvt and 3D Rooms.rvt, two opening families and a rebar automation guide PDF are included. The files are a free direct download from GitHub.
