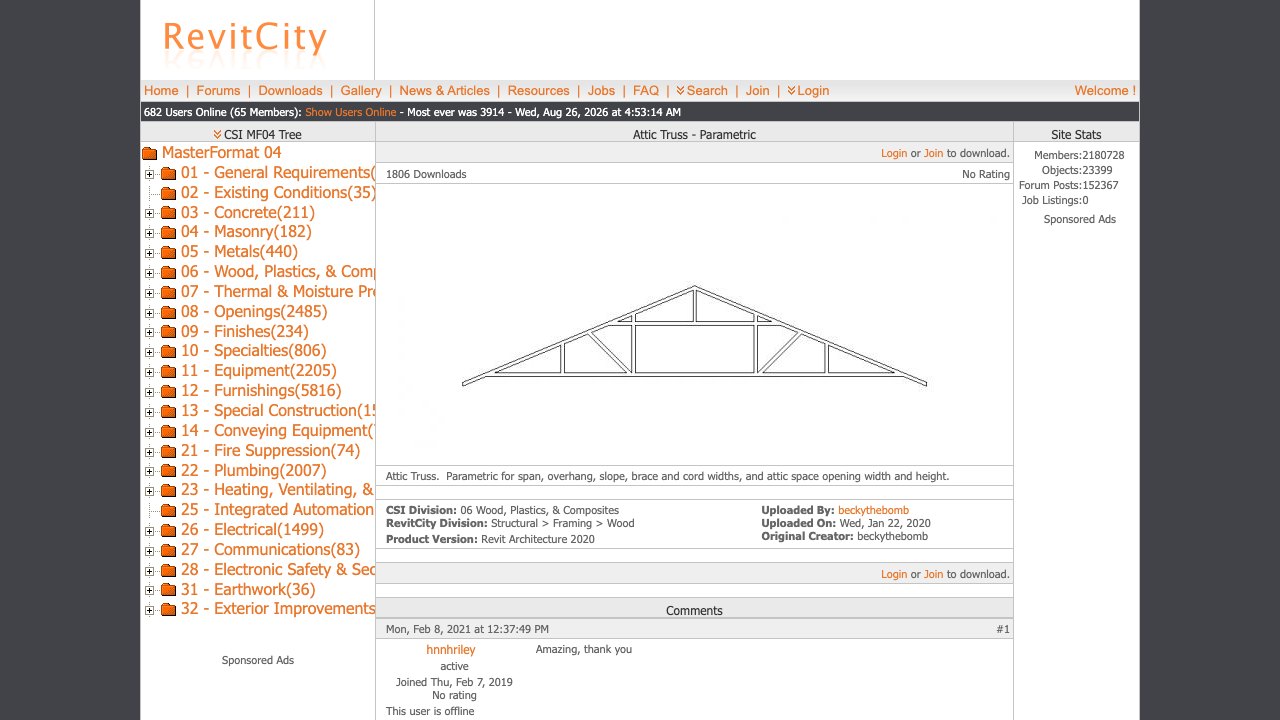

Free Revit 2020 Family: Parametric Attic Roof Truss (beckythebomb)

Original title: Attic Truss - Parametric

Overview

RevitCity member beckythebomb shared this attic truss family in January 2020, marked as Revit Architecture 2020. It is parametric for span, overhang, slope, brace and chord widths, and for the width and height of the attic space opening inside the truss.

The opening parameters set the size of the attic space left free inside the truss. Downloading requires a free RevitCity login, with no price.

What you get: Family (.rfa) · Revit 2020

Visit Original Project

Access: Free (free account required)
