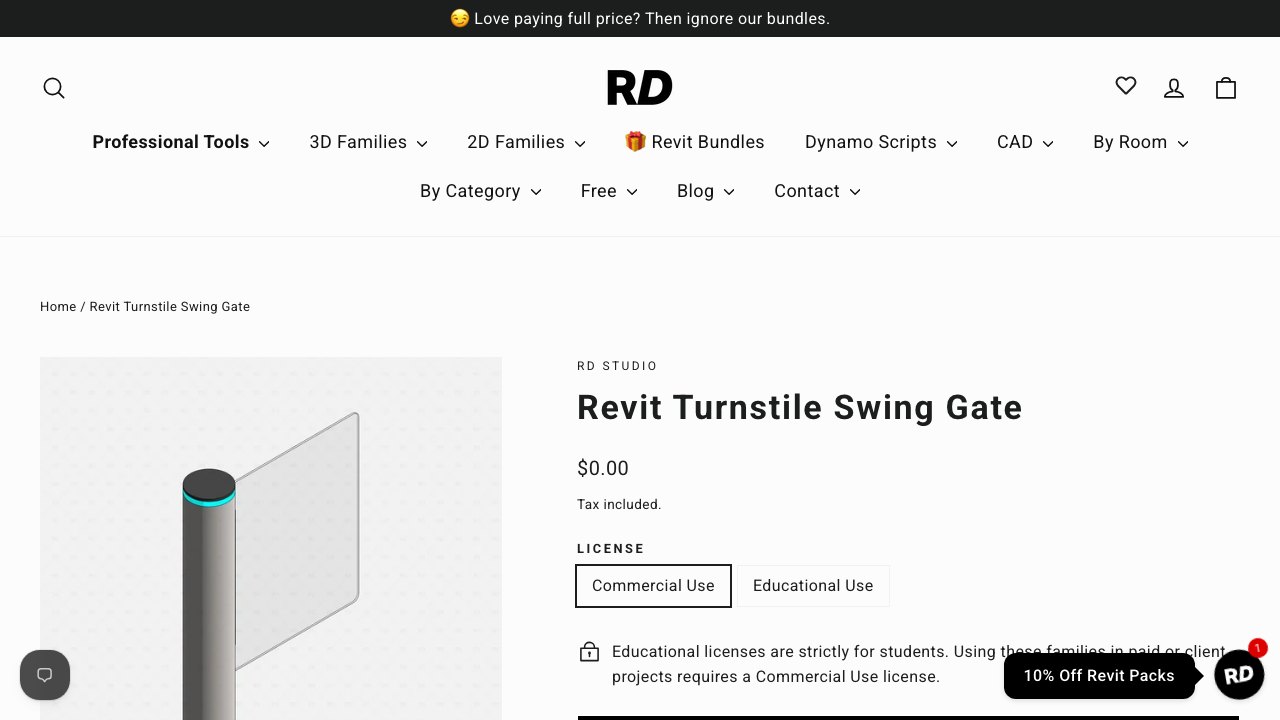

Free Revit 2020 Family: Parametric Turnstile Swing Gate with Clearance Zones (RD Studio)

Overview

RD Studio shares a free, fully parametric Revit family of a turnstile swing gate for access control, entrance security and circulation planning in offices, transport hubs, retail and institutional buildings. The family has adjustable dimensions, clearance zone visibility parameters for access planning and circulation studies, and material parameters.

RD Studio describes the geometry as lightweight for plans, elevations and 3D views, and lists compatibility with Revit 2020 and newer. The .rfa is a $0 product in the RD Studio store, and a full pack of swing gates is sold separately.
