Free Revit 2022 Family: Generic ISO Metric Bolt Assembly with Type Catalog (Matthias Wolff)

Overview

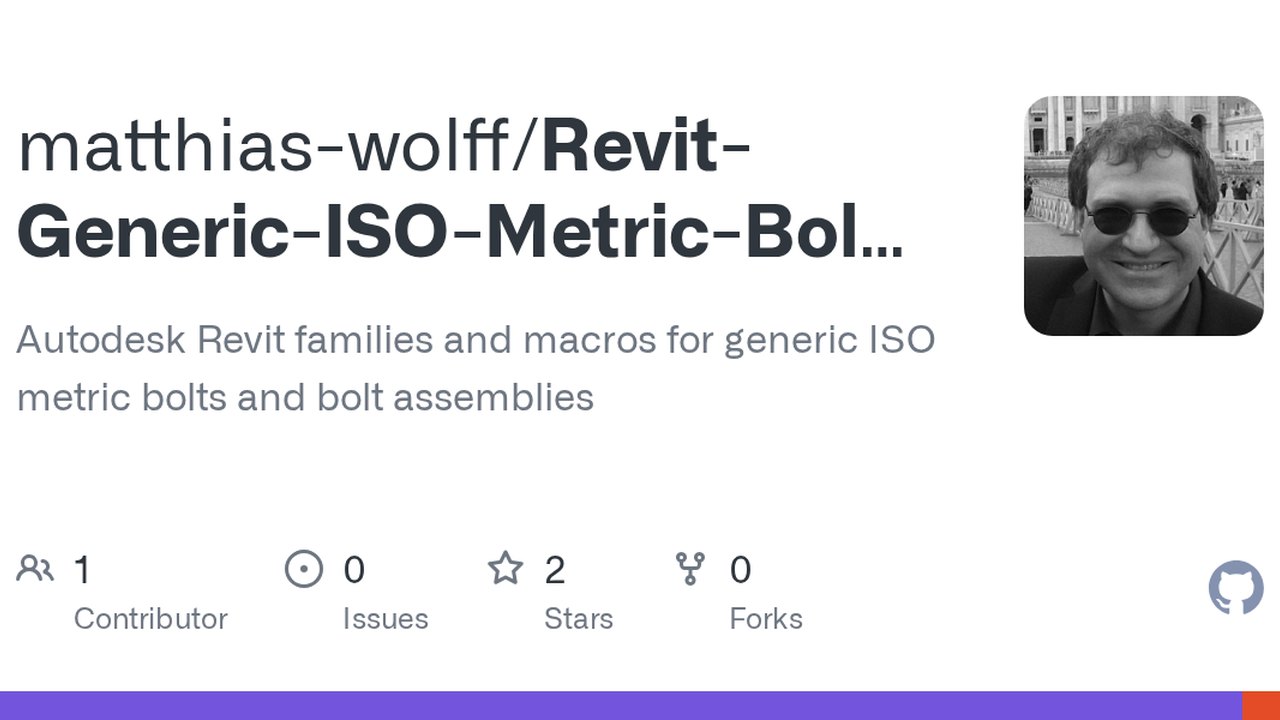

Matthias Wolff publishes on GitHub a set of Autodesk Revit families and macros for generic ISO metric bolts and bolt assemblies (GIMBA). The hex bolt assembly family has an extensive type catalog from M 5 to M 64, optional nut and washers, a freely adjustable bolt length and all other dimensions automated to DIN 931/ISO 4014 and DIN 933/ISO 7089, with grip and bolt modes.

Visibility follows the detail level, and a galvanized steel material with a thread texture is included for rendering. The README states Revit 2022+, the repository is MIT-licensed, and the files are a free download from GitHub.
