Free Revit 2023 Project: Low-Cost Educational Wave Flume Model (Bartolomé Morote-Sánchez)

Overview

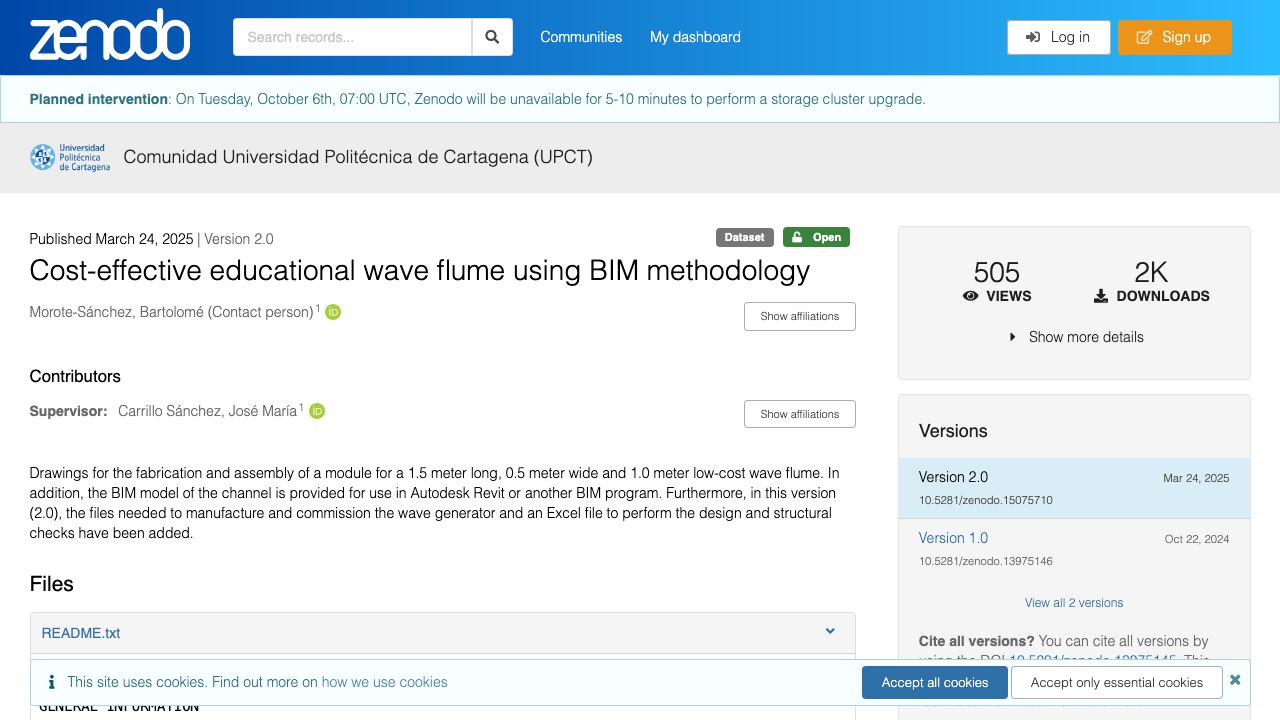

Bartolomé Morote-Sánchez of the Polytechnic University of Cartagena shares on Zenodo the design of a low-cost educational wave flume developed with a BIM methodology. The record provides fabrication and assembly drawings for a module 1.5 m long, 0.5 m wide and 1.0 m high, together with the Revit BIM model of the channel and an IFC export.

Version 2.0 adds the files needed to manufacture the wave generator as STL models and an Excel sheet for design and structural checks. The Revit file was saved in Revit 2023 and everything is free under CC BY 4.0.
