Free Revit Dynamo Script Pack: Early Structural Piling, Framing and Sheet Graphs (Chris Stone)

Overview

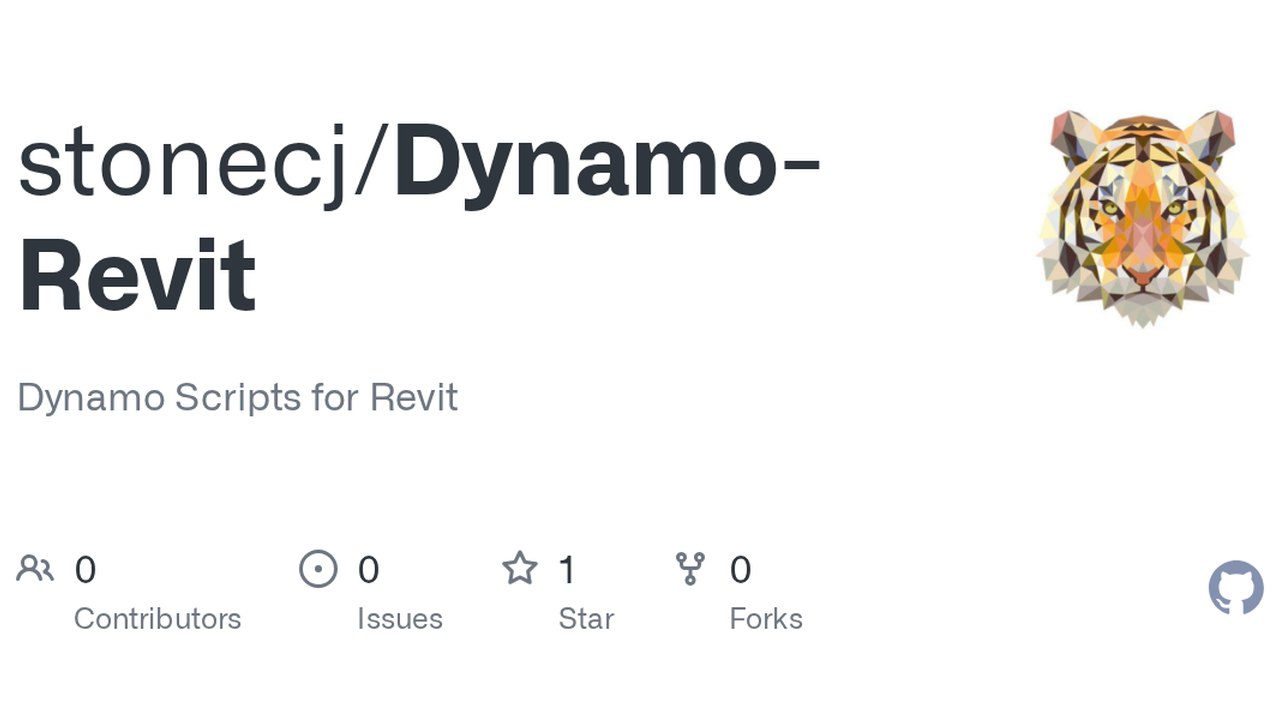

Chris Stone shares 14 Dynamo graphs for Revit from 2015 and 2016 in a GitHub repository, most with a structural engineering focus. They generate structural framing for a sports facility, export pile schedules to Excel, extend piles down to a toposurface, annotate piles, place families at grid intersections and support architecture and structure coordination.

Documentation graphs create titled drawing sheets from Excel, duplicate views as dependents with new names or templates and strip views and sheets from a model, and one graph covers Dynamo basics. The graphs use the early Dynamo 0.7 and 0.8 file format and are a free download from GitHub.
