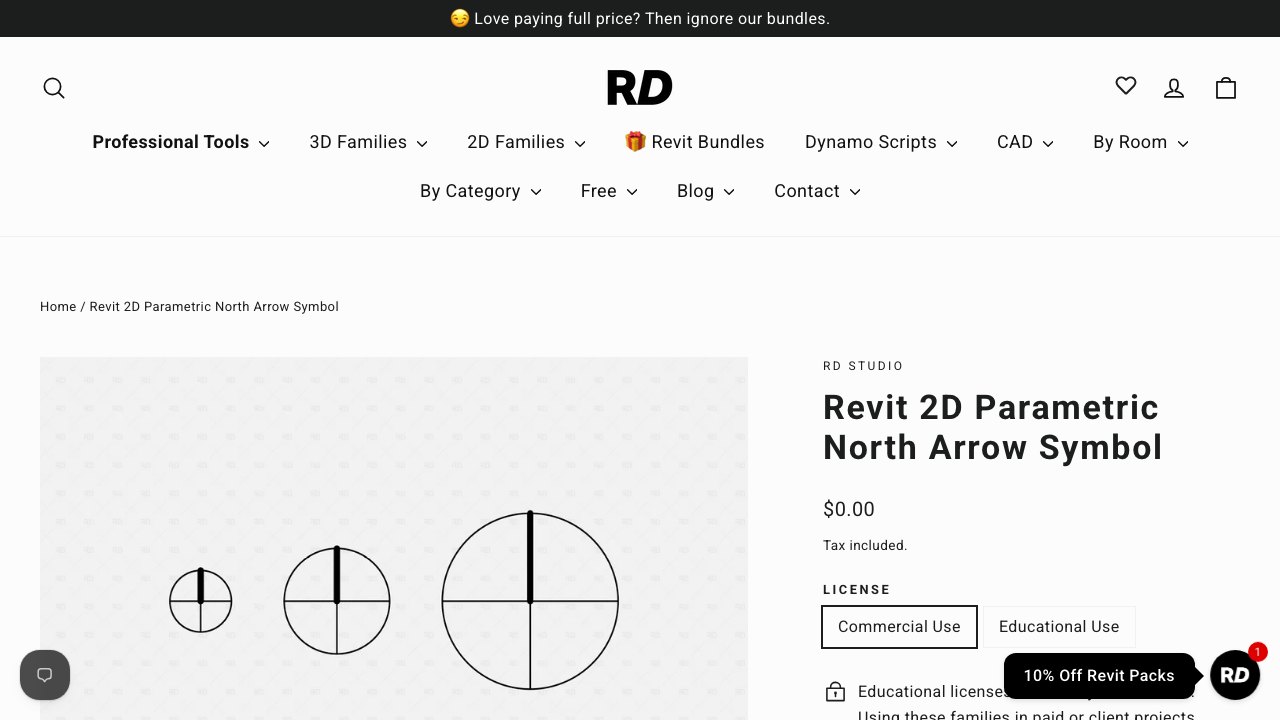

Free Revit Family: 2D Parametric North Arrow Annotation Symbol (RD Studio)
Original title: Revit 2D Parametric North Arrow Symbol
Overview
RD Studio offers this Revit 2D family of a minimalist parametric north arrow for sheets and plans. It is a generic annotation family with two instance parameters, Radius and North Angle, so one symbol can be resized and rotated to the project north.
The family is a $0 product in the RD Studio store and downloads after checkout.
What you get: Family (.rfa)
Visit Original ProjectAccess: Free (email signup)
