Free TouchDesigner Project: Interactive Matrix Transformation Pipeline Visualizer (lucasm)

Overview

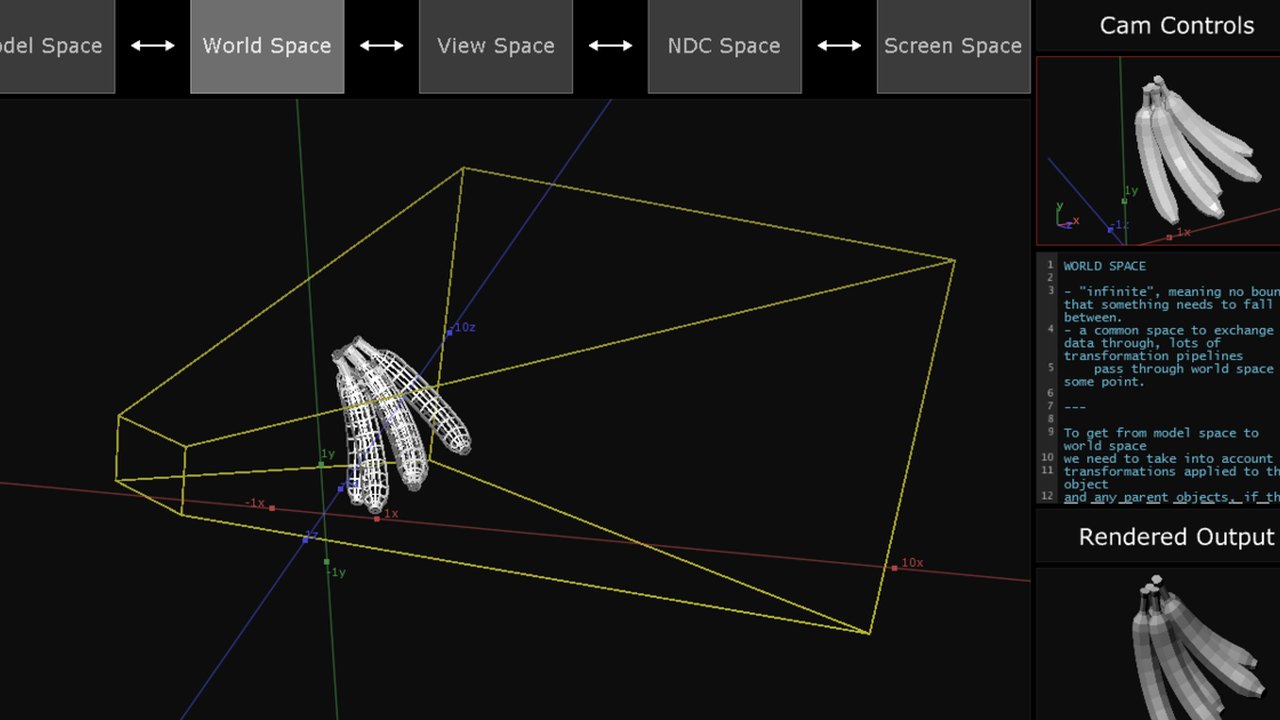

lucasm wrote this guided, interactive overview on derivative.ca for anyone who wants to write shaders or manipulate transforms in a custom way and has run into matrices. It walks through the different matrices involved in moving geometry from model space to screen space and the stages in between.

The attached matrix_transform_visualizer_v2.zip contains martixTransformViz.toe, a bananas.obj model and earlier saved versions of the file. The zip is a free download from the post's Asset Downloads section.
